Cube Mould
A cube mould (also spelled “cube mold” in American English) is a specialized tool used in construction materials testing, particularly for casting cubic specimens of concrete, cement, mortar, or grout. These specimens are then tested for compressive strength, which is a critical measure of material durability and quality in building projects. The molds come in standard sizes like 2 inches (50mm), 6 inches (150mm), or metric equivalents, and are designed to produce precise, uniform cubes for reliable lab or field testing.
Cube moulds adhere to standards from organizations like ASTM (American Society for Testing and Materials) and AASHTO, ensuring consistency in testing procedures. They are typically reusable and made from durable materials to withstand repeated use with abrasive materials like cement.
Common Types
MODEL | TYPE | MATERIAL | SIZE OPTIONS | KEY FEATURES | TYPICAL USE |

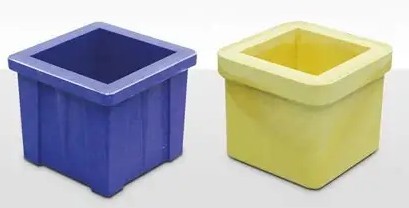

BE 79-01 | Plastic Cube Mould | Reinforced plastic (heavy-duty engineered plastic) | 150x150mm (6x6in), single-cavity | One-piece design with ribs for strength; lightweight and corrosion-resistant; easy to clean. | General concrete compressive strength testing; mortar penetration tests. |
BE 79-02 | Steel Cube Mould | Heavy-duty steel with base plate | 50mm, 100mm, 150mm (2in, 4in, 6in); single or multi-cavity | Two-part construction; rugged for high-volume use; includes base for stability. | Compression testing of cement, mortar, and grout; field or lab environments. |
BE 79-03 | Brass Cube Mould | Forged brass with guide pins and wing nuts | 50mm (2in); 3-gang (three cavities) | Screened upper surface; diagonal or parallel arrangement; detachable base. | Screened upper surface; diagonal or parallel arrangement; detachable base. |
BE 79-04 | Stainless Steel Cube Mould
| Stainless steel with angles and studs
| 50mm (2in); 3-gang parallel
| Resistant to acids and mild corrosives; secure clamping.
| Mortar and cement tensile/compressive tests; high-precision applications.
|
BE 79-05 | Econ-O-Cube (Multi-Gang)
| Engineered plastic
| 150mm; 3-gang diagonal
| Casts three cubes at once; includes covers and base; resists cement buildup. | Efficient batch testing for concrete or grout quality control.
|
