Direct Shear
A direct shear test is a geotechnical laboratory procedure to measure the shear strength of soil by applying a normal load to a soil sample and then shearing it horizontally across a predetermined plane until failure. The test determines the soil’s cohesion (C) and angle of internal friction (Ø), which are critical parameters for designing structures like foundations and retaining walls. The soil sample is contained in a two-part shear box, and the upper half is moved horizontally relative to the fixed lower half, while the shear force and horizontal displacement are measured until the sample fails.
STANDARD FOLLOWING
Ref. Standards IS:11229, 2720 (Part 13)
DESCRIPTION
Type of Shear – Direct/Residual measurement
Operation – Motorized
Rates of Strain – A – 1.25, 0.625, 0.25, 0.125, 0.05, 0.025,
(mm/min) B – 0.01, 0.005, 0.002, 0.001, 0.0004, 0.0002
Specimen Size – 60 x 60 x 25mm
Power – 220 V, 50 Hz, Single Phase, AC supply
BE 12-01 | Manual type Direct Shear |
BE 12-02 | Digital with Software type Direct Shear |

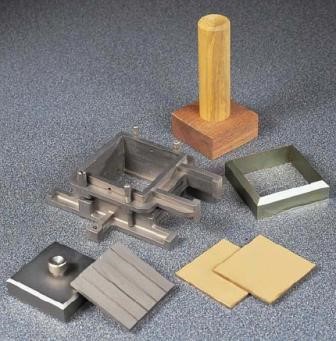

BE 12-03 | Shear Box Assembly |
BE 12-04 | Halves of the Shear Box |
BE 12-05 | Plane Gripper Plate |
BE 12-06 | Perforated Gripper Plate |
BE 12-07 | Porous Stone |
BE 12-08 | Top Loading Pad |
BE 12-09 | Base Plate |

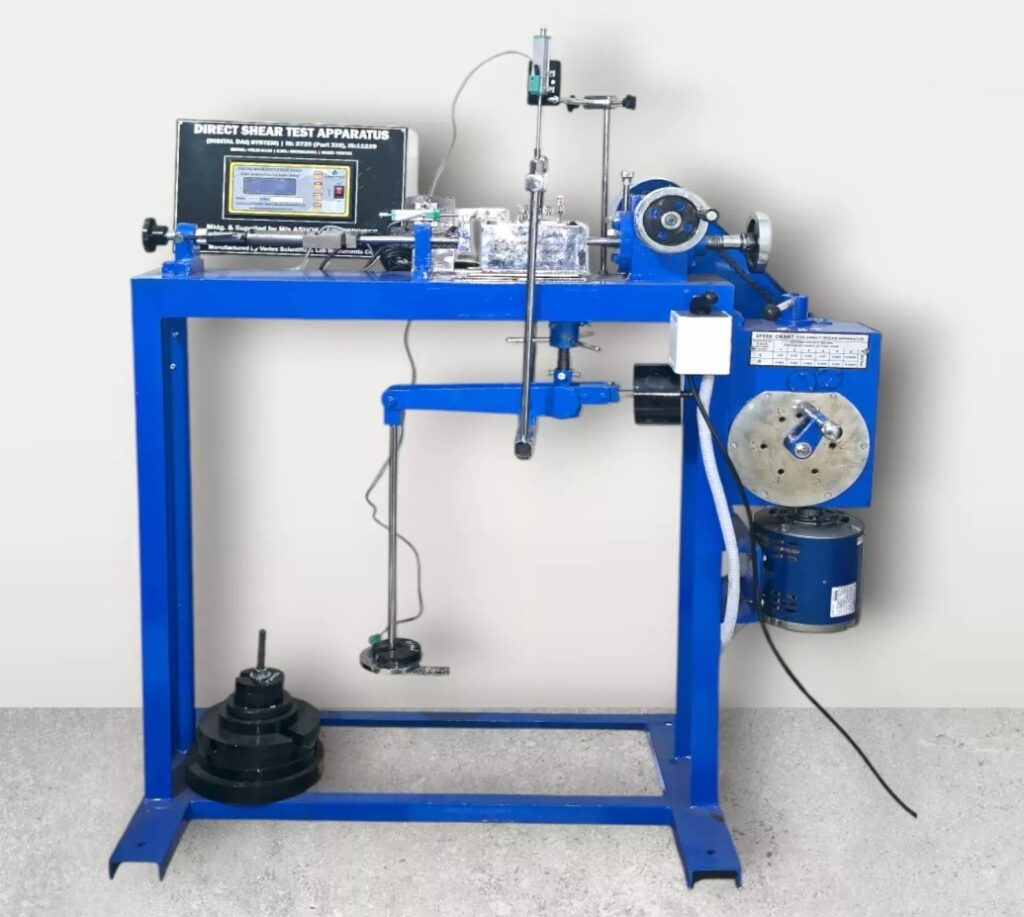

Digital with Software type Direct Shear
It’s Machine same as a BE 12-01 only some difference Digitalization with Software and include Load Cell, LVDT.
BE 12-10 | Shear Box Housing,with two Ball Roller Strips |
BE 12-11 | Specimen Cutter |
BE 12-12 | Surcharge Weights to attain Normal Stress of 3 kg/cm² 0.05 kg/cm² 4 Nos. 0.10 kg/cm² 1 No. 0.20 kg/cm² 1 No. 0.50 kg/cm² 3 Nos. 1.00 kg/cm² |
BE 12-13 | Tension- Compression Proving Ring, 25 kN (25000 kgf) capacity |
BE 12-14 | Dial Gauge – 25 mm (2 Nos.) |
BE 12-15 | Load Cell 25 kn |
BE 12-16 | LVDT – 25 mm (2 Nos) |
BE 12-17 | Digital Indicator |
