Hot Air Oven

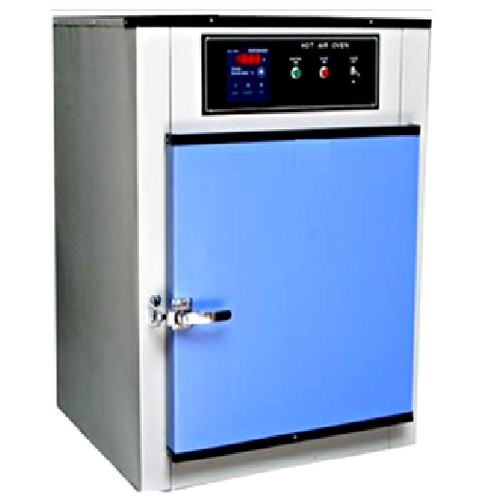

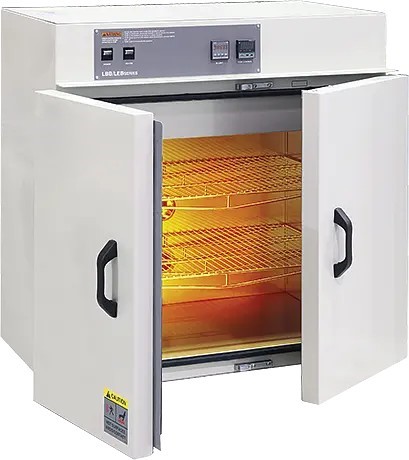

Hot Air Oven Electrically Operated and Thermostatically Controlled, Stainless Steel internal chamber and External Body made of Mild Steel Sheet (Powder Coated Paint) or Stainless Steel Sheet with glass wool insulation between the chambers. Beaded heating elements are placed in ribs at the bottom and sides. An L-shaped thermometer is fitted to the unit for reading the chamber temperature. Air ventilators are also provided on the sides of the unit. The internal chamber is provided with ribs for adjusting the shelves according to requirements. The On/Off Rocker Switch with Indicator and Thermostat Indicator is fitted on the display panel. It’s single & double door oven.
It’s equipment mostly used to soil, concrete, cement & asphalt laboratory.
Standard Following
ASTM C109, ASTM C780, AASHTO T47, AASHTO T179, BS 2000
Standard Following
| MODEL | SIZE | USED |
| BE 140-01 | Thermostatically Controlled, Range 50º to 250º C ± 1º C with air circulating fan, S.S. Inside, Size 450 x 450 x 450mm | Soil, Cement, aggregate |
| BE 140-02 | Laboratory Electric Oven, Thermostatically Controlled, Range 50º to 250º C ± 1º C with air circulating fan, S.S. Inside Size 450 x 600 x 450mm | Soil, Cement, aggregate |
| BE 140-03 | Laboratory Electric Oven, Thermostatically Controlled, Range 50º to 250º C ± 1º C with air circulating fan, S.S. Inside Size 600 x 600 x 600mm | Soil, Cement, aggregate |
| BE 140-04 | Laboratory Electric Oven, Thermostatically Controlled, Range 50º to 250º C ± 1º C with air circulating fan, S.S. Inside Size 600 x 900 x 450mm | Soil, Cement, aggregate |
| BE 140-05 | Laboratory Electric Oven, Thermostatically Controlled, Range 50º to 250º C + 1º C with air circulating fan, S.S. Inside Size 600 x 900 x 600mm | Soil, Cement, aggregate |
| BE 140-06 | Laboratory Electric Oven, with Digital Indicator Cum Controller with Safety Alarm, Range 50º to 250º C ± 1º C with a i r c i r c u l a t i n g f a n , S . S . I n s i d e Size 450 x 450 x 450mm | Soil, Cement, aggregate |
| BE 140-07 | Laboratory Electric Oven, with Digital Indicator Cum Controller with Safety Alarm, Range 50º to 250º C ± 1º C with a i r c i r c u l a t i n g f a n , S . S . I n s i d e Size 450 x 600 x 450mm | Soil, Cement, aggregate |
| BE 140-08 | Laboratory Electric Oven, with Digital Indicator Cum Controller with Safety Alarm, Range 50º to 250º C ± 1º C with a i r c i r c u l a t i n g f a n , S . S . I n s i d e Size 600 x 600 x 600mm | Soil, Cement, aggregate |
| BE 140-09 | Laboratory Electric Oven, with Digital Indicator Cum Controller with Safety Alarm, Range 50º to 250º C± 1º C with a i r c i r c u l a t i n g f a | Soil, Cement, aggregate |
| BE 140-10 | Laboratory Electric Oven, with Digitai Indicator Cum Controller with Safety Alarm, Range 50º to 250º C ± 1º C with a i r c i r c u l a t i n g f a n , S . S . I n s i d e Size 600 x 900 x 600mm | Soil, Cement, aggregate |
| BE 140-11 | Laboratory Electric Oven, Thermostatically Controlled, Range 50º C to 300º C + 3º C with air circulating fan, S.S. Inside Size 450 x 450 x 450 mm | Soil, Cement, aggregate |
| BE 140-12 | Thermostatically Controlled, Range 50º C to 300º C ± 3º C with air circulating fan, S.S. Inside Size 450 x 600 x 450 mm | Soil, Cement, aggregate |
| BE 140-13 | Laboratory Electric Oven, Thermostatically Controlled, Range 50º C to 300º C ± 3º C with air circulating fan, S.S. Inside Size 600 x 600 x 600 mm | Soil, Cement, aggregate |
| BE 140-14 | Thin film oven thermostatically Controlled, Range 50º C to 300º C ± 3º C with air circulating fan, S.S. Inside Size 450 x 600 x 450 mm | Used for Asphalt or Bitumen test |

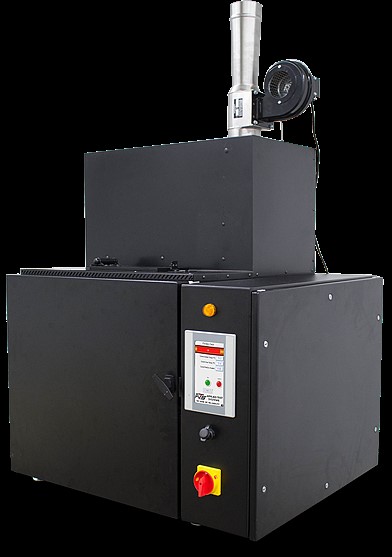

| BE 140-15 | Pyrolytic Ovens thermostatically Controlled , High-temp. switch, Range 200º C to 500º C ± 3º C, (965x838x1,524cm) WxDxH | Used for Asphalt or Bitumen test |
