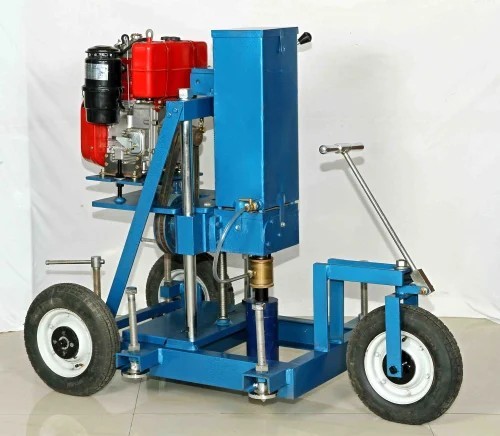

Pevent Core Drilling Machine
Pavement core drilling machines with petrol (gasoline) engines are specialized tools designed for extracting cylindrical core samples from asphalt, concrete, roads, bridges, and similar hard materials. These machines are essential in construction, civil engineering, and quality control testing (for super pave programs or standards like EN 12697-27 and ASTM D5361). Petrol engines provide portable, independent power, making them ideal for field use where electricity isn’t available. They typically feature vertical drilling capabilities, water cooling systems to flush debris, and diamond-tipped bits for durability.
Standard Following
EN 12697-27 and ASTM D5361
Key Advantages
- Portability: Many models are lightweight (e.g., 22 lbs for hand-held units) and can be carried in a pickup truck or mounted on hitches for quick setup.
- Power Range: Engines from 4 HP to 17.5 HP, allowing for efficient drilling in various materials.
- Core Capacity: Up to 200 mm diameter and 700 mm depth, with speeds adjustable (e.g., 350–1100 RPM) for soft or hard samples.
- Ease of Use: One-person operation, minimal vibrations via pulley mechanisms, and quick bit changes.
Discription
Model | Engine Specs | Core Capacity | Weight/Portability | Key Features |
BE 97-01 | 31cc, 4-cycle Honda, 1.5 HP | Up to 7″ (178 mm) dia., vertical/horizontal | 22 lbs, ultra-lightweight, hand-held | For concrete/asphalt/soil; includes water swivel; ideal for road/bridge contractors |
BE 97-02 | 11.5 HP petrol | Up to 200 mm dia., 500 mm depth | 110 kg, pickup truck portable | Rugged for all materials; fixed coupling bits; Superpave compatible |
BE 97-03 | Not specified (petrol assumed) | Up to 200 mm dia.
| Portable
| For concrete/asphalt; vertical support column |
BE 97-04 | Honda 5.5/6 HP | Up to 200 mm dia. x 450 mm depth | Portable
| For asphalt/concrete/reinforced structures; EN/ASTM compliant |
BE 97-05 | 5 HP petrol with pulley | 25–150 mm dia., up to 700 mm depth | Rigid base, leveling feet | Low vibrations; speeds 475/800 RPM; for roads/runways |
BE 97-06 | 6.5 HP, 4-stroke, 190cc | Up to 200 mm dia
| Height 1300 mm, base 625×900 mm | Two speeds (350/900 RPM); includes core barrel and bits |
BE 97-07 | Not specified (gasoline) | Up to 6″ (152 mm) dia | Portable, truck-mountable | Fast setup; low bit wear; for slabs/pavements |
BE 97-08 | 17.5 HP, 4-cycle with electric start | Up to 16″ (406 mm) dia., 300–1100 RPM | Trailer/van mountable
| For concrete/asphalt/rock; battery charger included |
