Temping Rod
Short Discription :

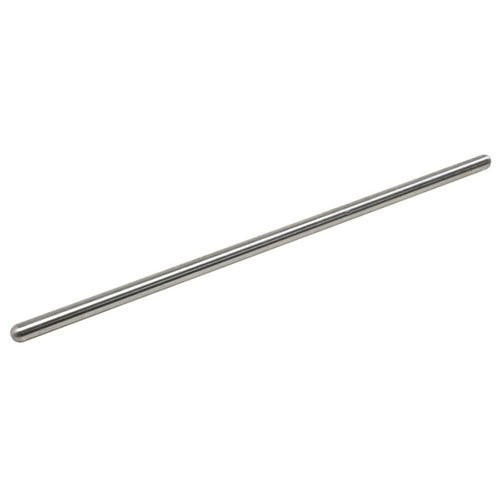

A tamping rod (also known as a puddling rod) is a specialized tool used in concrete testing to consolidate fresh concrete samples by eliminating air voids. It consists of a straight, round steel rod, typically with rounded or hemispherical ends for even pressure distribution during use
Standard Following :
ASTM C143, ASTM C31
Brochure:
DESCRIPTION
FEATURES
VIDEO
DESCRIPTION
Specifications
- Diameter: 3/8 inch (9.5 mm) or 5/8 inch (16 mm), depending on the test standard (ASTM C31 for cylinders uses 5/8 inch).
- Length: Commonly 12 inches (30.5 cm) for smaller tests or 18–24 inches (46–61 cm) for larger molds.
- Material: Stainless steel for rust resistance and durability; some models include a built-in scale for depth measurement.
- These rods are widely available from lab supply companies and meet standards like ASTM C143 for slump tests. If you’re referring to a different context (a smoking accessory), provide more details for clarification!
Common use
- Slump testing: Rods the concrete inside a slump cone to ensure uniform compaction before measuring the slump height.
- Cylinder and cube mold preparation: Compacts concrete layers in molds for compressive strength tests.
- Air content and unit weight tests: Helps achieve consistent density by removing entrapped air
